Capacity |
Max. swing |
ø675 mm
(ø26.5") |
|
Swing over carriage |
ø350 mm (ø14.0") |
| Max.
machining dia |
ø380 mm (ø14.75") |
|
Max machining length * 1 |
-/ 538 mm (21.284") /- |
| Distance
between chuck jaw faces (both spindles) |
575 mm 22.701") /-/ 575 mm (22.701") |
|
Max. bar material diameter
* 2 |
ø65 mm (ø2.5") |
|
Travel |
X-axis
travel |
230 mm
(9") |
|
Y-axis travel |
-/ 100 mm (4.0") / 100 mm
(4.0") |
| Z-axis
travel |
575 mm (22.625") |
| Main
spindle |
Spindle bore |
ø76 mm (ø3.0") |
| Second
spindle |
Spindle
speed |
6000 rpm
/-/ 6000 rpm |
| Rotary
tool spindle |
Spindle speed |
4500 rpm |
 |
|
Barfeeder |
ø6-65 mm |
| Bar length
(limited to headstock lenght) |
300-1500
mm |
|
Loading system |
Left/rear side load rack |
| Loading
capacity |
640 mm |
|
Headstock type |
Fixed |
| X or Z
axis retraction |
300 mm |
|
Diameter setup |
5 mins (manual) |
| Total
changeover |
10 mins (for
pusher) |
| Drive |
Pneumatic |
 |
|
Distabce between centers |
1000/1500/2000 mm |
| Swing over bed |
460 mm |
|
Swing over gap |
700
mm |
| Swing over cross slide |
290 mm |
|
Taper of spindle bore |
MT7 |
| Spindle nose |
D1-8 |
|
Spindle bore |
80
mm |
| Step of spindle speeds |
12 |
|
Range of spindle speeds |
42-1800 rpm/25-1800 rpm |
|
Range of cross feeds |
0.03-1.23 mm/r |
|
Range of longitudinal feeds |
0.04-2.46 mm/r |
|
Range of inch threads |
1-5/8-721 tpi/61 |
|
Range of metric threads |
0.5-20 mm/24 |
|
Range of modular threads |
0.25-10M.P./20 |
|
Range of diametral threads |
3-1/4-96D.P./45 |
| Top slide travel |
100 mm |
|
Cross slide travel |
230
mm |
| Tailstock quill travel |
130 mm |
|
Tailstock quill diameter |
75mm |
| Taper of tailstock
quill |
MT5 |

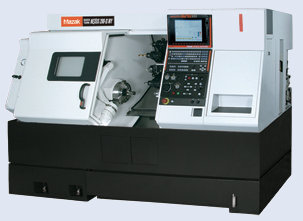

Mazak 200MY
